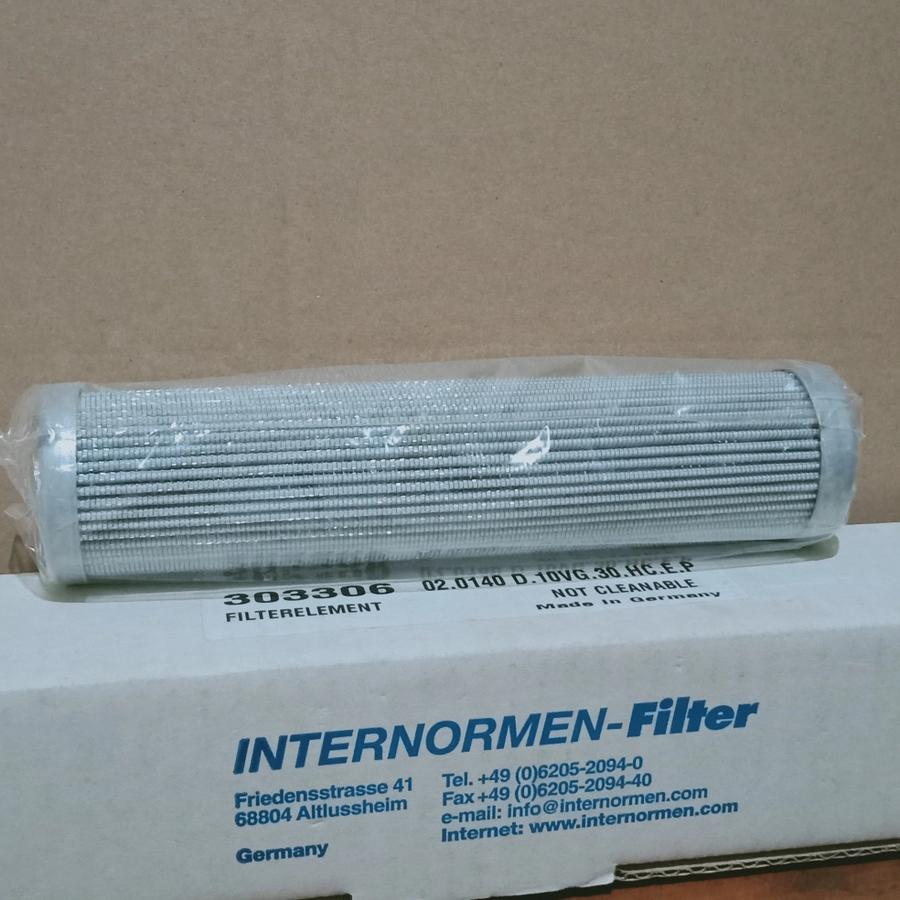

Part Number: 303306

Description:
Product Name Eaton Easy-Fit Exchange Filter Element Catalog Number 303306 Model Code 02.0140D.10VG.30.HC.E.P Product Length/Depth 193.5 mm Product Diameter 45 mm Product Weight 0.24 kg Compliances ISO 4406:99 NAS 1638 Certifications ISO2941 ISO2942 ISO2943 ISO3723 ISO3724 ISO3968 ISO16889 Filter element type Return-line filter elements Filter fineness 10 VG Filter media type Glass fiber fleece (VG) Sealing material Nitrile Nominal size 140 Delta P resistance 435 psi (30 Bar)

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

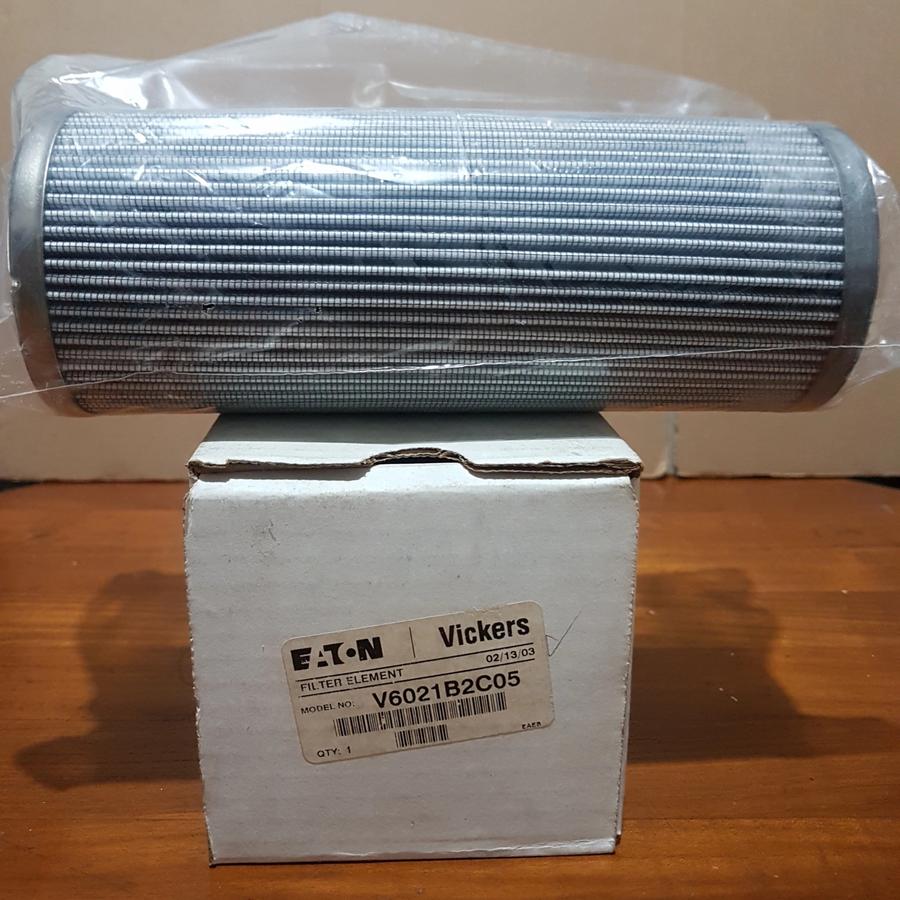

Part Number: V6021B2C05

Description:
Product Name Eaton V602 Pressure Filter Element Catalog Number 222AS10050A Model Code V6021B2C05 Product Length/Depth 203.2 mm Product Diameter 98.552 mm Product Weight 0.62 kg Compliances ISO 4406:99 NAS 1638 Certifications ISO2942 ISO3723 ISO3724 ISO16889 ISO3968 ISO2941 ISO2943 Global Catalog 222AS10050A Filter fineness C05 Filter media type C-Pak Sealing material Buna-N Nominal size 203 Delta P resistance 150 psi (10 Bar)

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

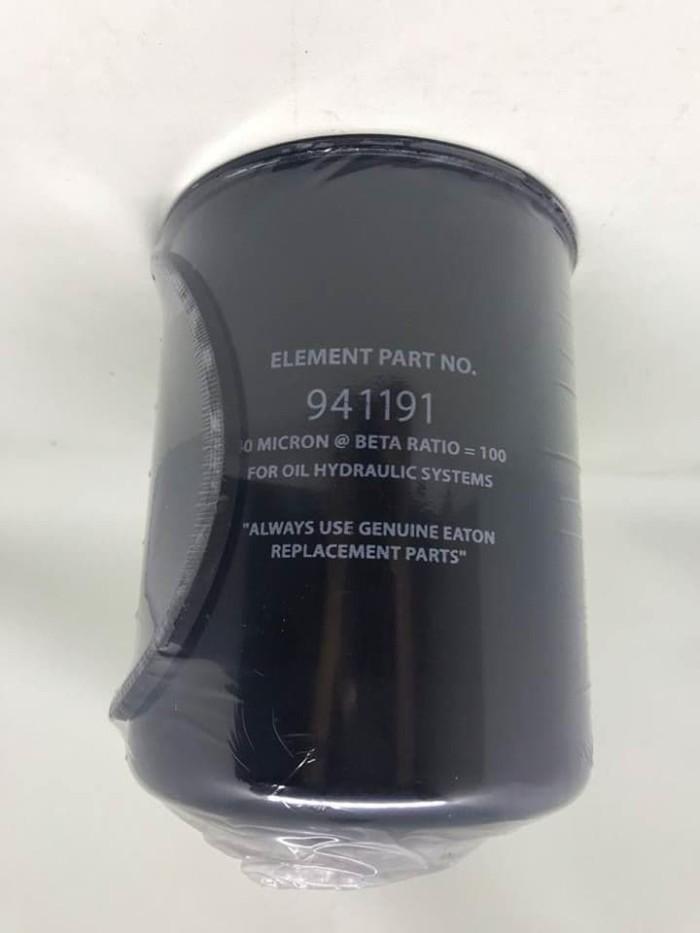

Part Number: 941191

Description:
Outer 128,0 mm Inner diameter G 1 1/2"-16 UN Length 170,0 mm Media type IMPREGNATED PAPER Efficiency 25 µm(c) βx ≥ 2 Max working pressure 14 bar Seals NBR Temperature range -30°C +100°C Note SPARE GASKETS INCLUDED

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

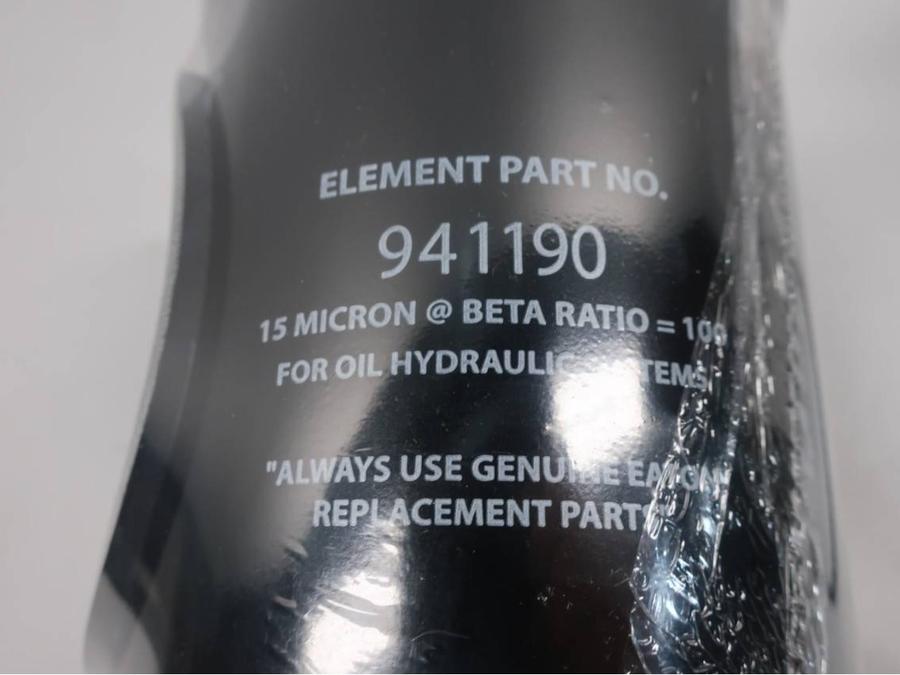

Part Number: 941190

Description:
Outer diameter 128,0 mm G 1 1/2"-16 UN Length 170,0 mm Media type IMPREGNATED PAPER Efficiency 3 µm(c) βx ≥ 2 Max working pressure 14 bar Seals NBR Temperature range -30°C +100°C Note SPARE GASKETS PROVIDED

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

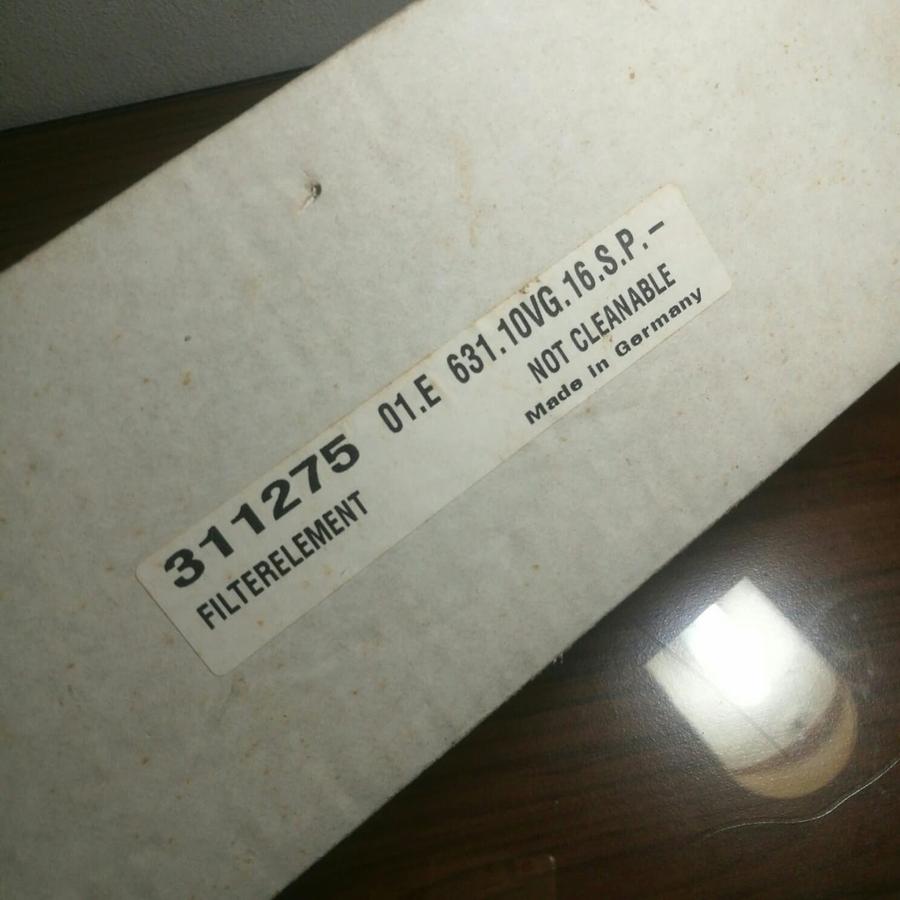

Part Number: 311275

Description:
Product Name Eaton 01.E Return line Filter Element Catalog Number 311275 Model Code 01.E631.10VG.16.S.P.- Product Length/Depth 312 mm Product Diameter 102 mm Product Weight 1.442 kg Compliances ISO 4406:99 NAS 1638 Certifications ISO3724 ISO2942 ISO2941 ISO3968 ISO3723 ISO16889 ISO2943 Filter element type Return-line filter elements Filter fineness 10 VG Filter media type Glass fiber fleece (VG) Sealing material Nitrile Nominal size 631 Retention rating 10.0 µm Delta P resistance 232 psi (16 Bar)

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

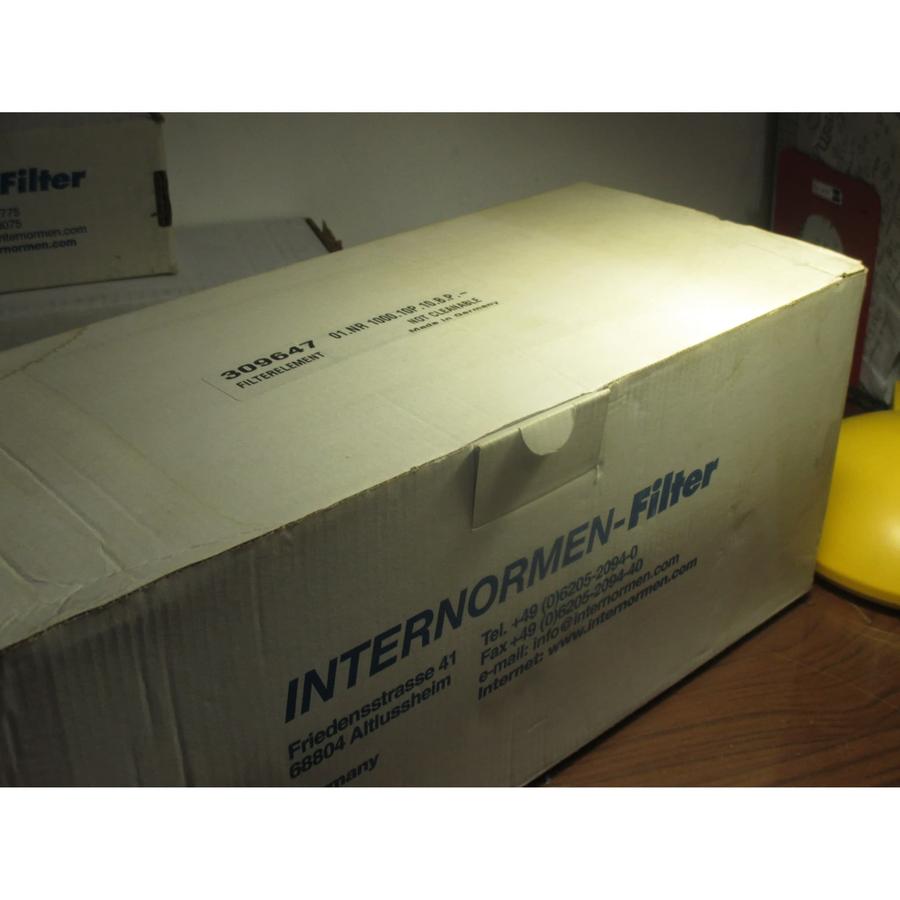

Part Number: 309647

Description:
Product Name Eaton 01.NR Return-Line Filter Element Catalog Number 309647 Model Code 01.NR1000.10P.10.B.P.- Product Length/Depth 400 mm Product Diameter 160 mm Product Weight 3.65 kg Compliances ISO 4406:99 NAS 1638 DIN 24550-4 Certifications ISO2941 ISO2942 ISO2943 ISO3723 ISO3724 ISO3968 ISO16889 Filter element type Return-line filter elements (DIN 24550-4) Filter fineness 10 P Filter media type Paper (P) Sealing material Nitrile Nominal size 1000 Delta P resistance 145 psi (10 Bar)

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

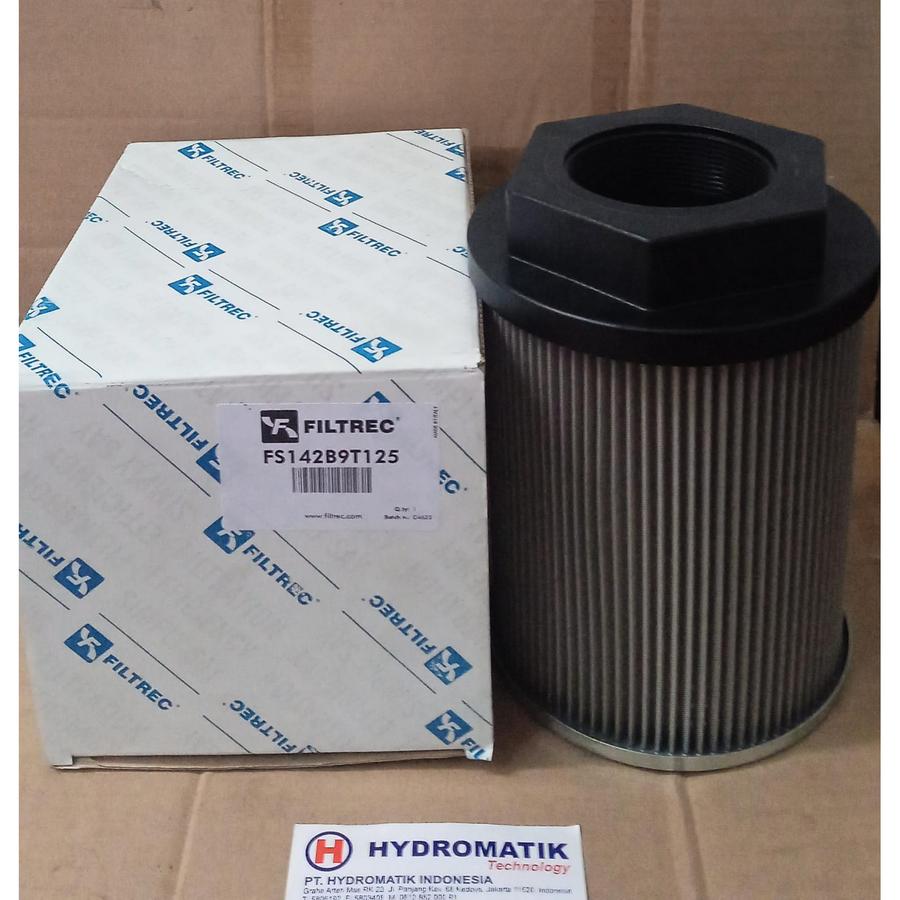

Part Number: FS142B9T125

Description:
Part Type: Hydraulic Element Type: Suction Strainer Product Media: Wire Mesh Height: 8.350 OD Top: 5.910 OD Bottom: 5.910 Thread Size (in): 2 1/2 Thread Type: BSP Collapse Pressure (PSI): 15 Flow Rate (GPM): 73 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Filter Area (SQ IN): 314 Flow Direction: Outside-In Fluid Type: HH / HL / HM / HV Micron 1: 125 Weight (LBS): 1.815

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

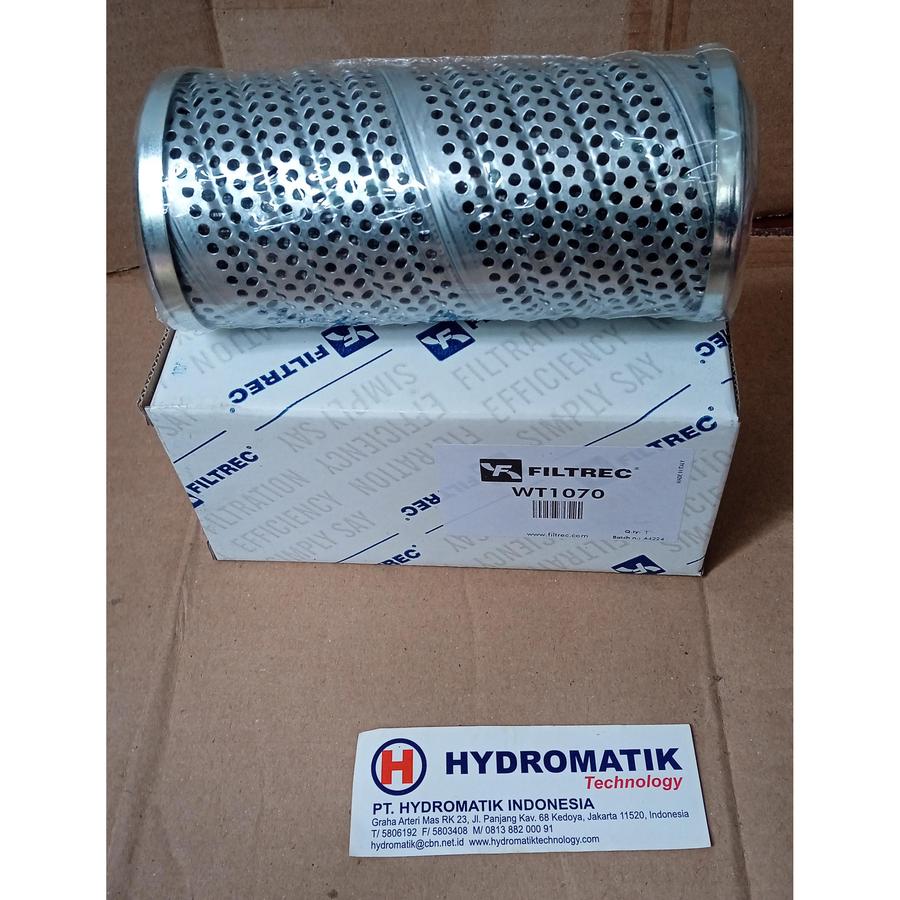

Part Number: WT1070

Description:
Part Type: Hydraulic Element Type: Return Line Product Media: Wire Mesh Height: 5.910 OD Top: 2.830 ID Top: 0.330 OD Bottom: 2.830 ID Bottom: 1.770 Collapse Pressure (PSI): 145 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Filter Area (SQ IN): 136 Flow Direction: Inside-Out Fluid Type: HH / HL / HM / HV Micron 1: 60 Weight (LBS): 2.5

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

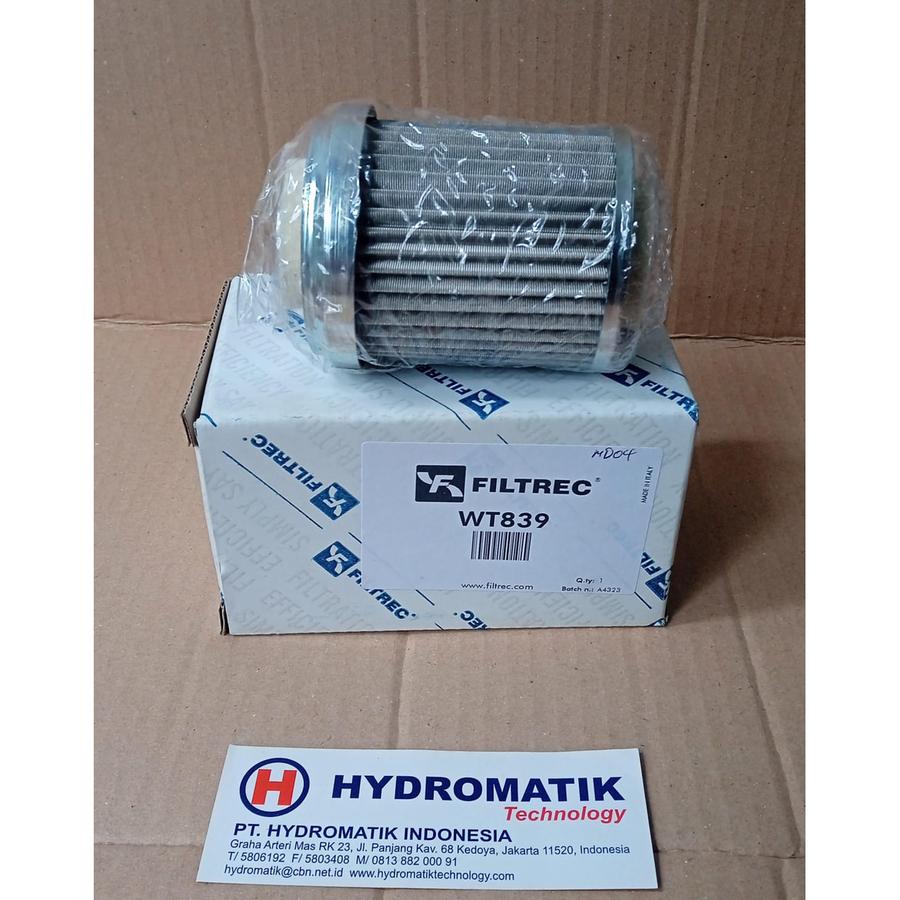

Part Number: WT839

Description:
Part Type: Hydraulic Element Type: Return Line Product Media: Wire Mesh Height: 3.270 OD Top: 2.300 ID Top: 0.940 OD Bottom: 2.300 ID Bottom: 0.940 Collapse Pressure (PSI): 145 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Filter Area (SQ IN): 44 Flow Direction: Outside-In Fluid Type: HH / HL / HM / HV Micron 1: 60 Weight (LBS): 0.345

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

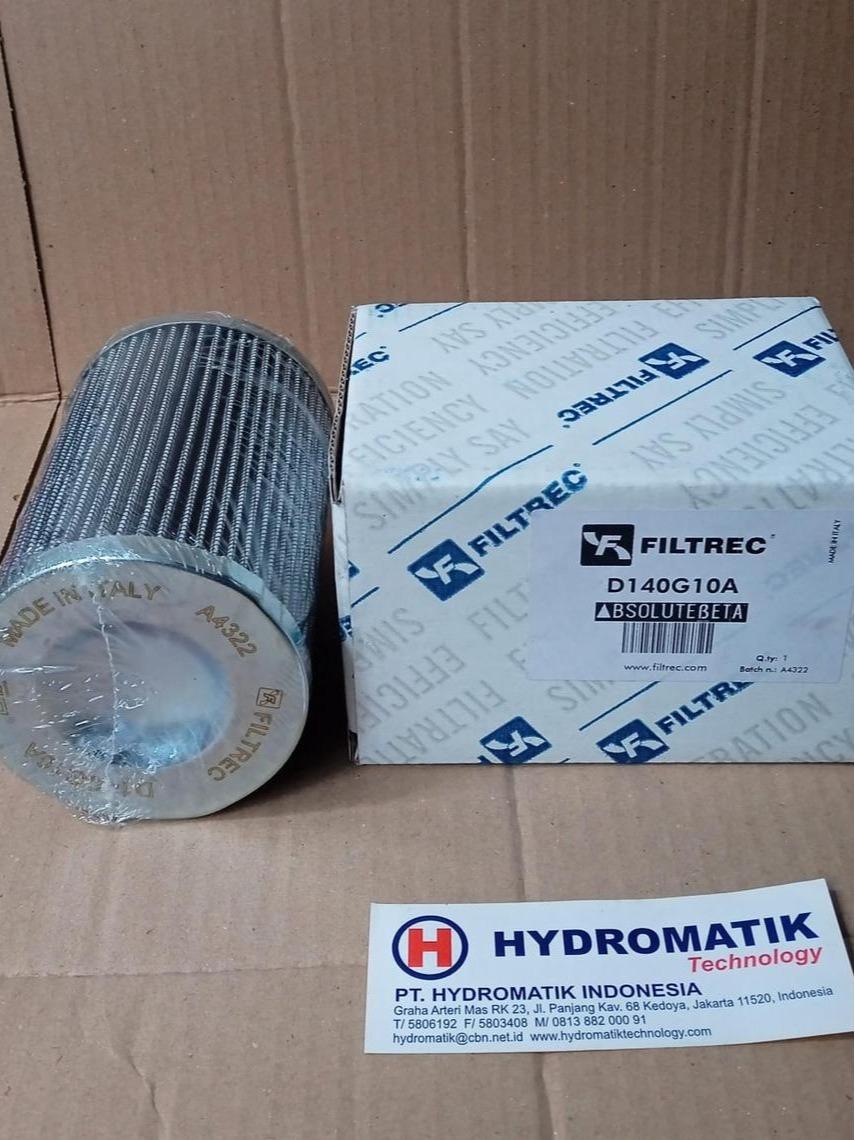

Part Number: D140G10A

Description:
Part Type: Hydraulic Element Type: Pressure Line Product Media: Glass Height: 4.560 OD Top: 3.090 ID Top: 1.720 OD Bottom: 3.090 Collapse Pressure (PSI): 305 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/9.9 Beta Ratio 2: 1000/12.4 Micron 1: 10 Weight (LBS): 0.9041

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

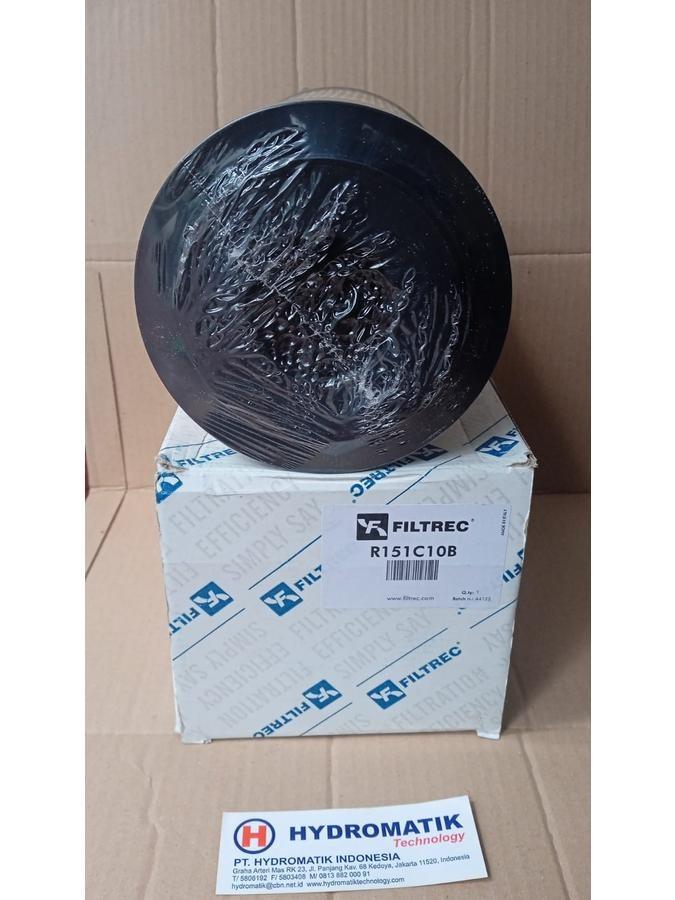

Part Number: R151C10B

Description:
Part Type: Hydraulic Element Product Media: Paper/Cellulose Height: 7.870 OD Top: 5.120 ID Top: 2.000 BPVS_Setting (PSI): 36 Operating Temp Min (F): -40 Operating Temp Max (F): 212 Gasket Material: NBR Micron 1: 10 Weight (LBS): 2.866

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

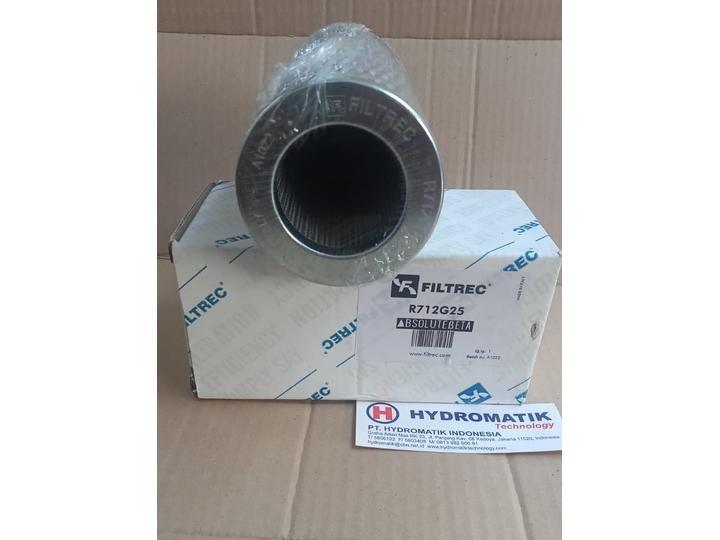

Part Number: R712G25

Description:
Part Type: Hydraulic Element Type: Return Line Product Media: Glass Height: 5.900 OD Top: 2.840 ID Top: 1.770 OD Bottom: 2.840 ID Bottom: 0.330 Collapse Pressure (PSI): 145 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 21 Filter Area (SQ IN): 232 Flow Direction: Inside-Out Gasket Material: Buna Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/20.7 Beta Ratio 2: 1000/26.6 Micron 1: 20 Weight (LBS): 0.532

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

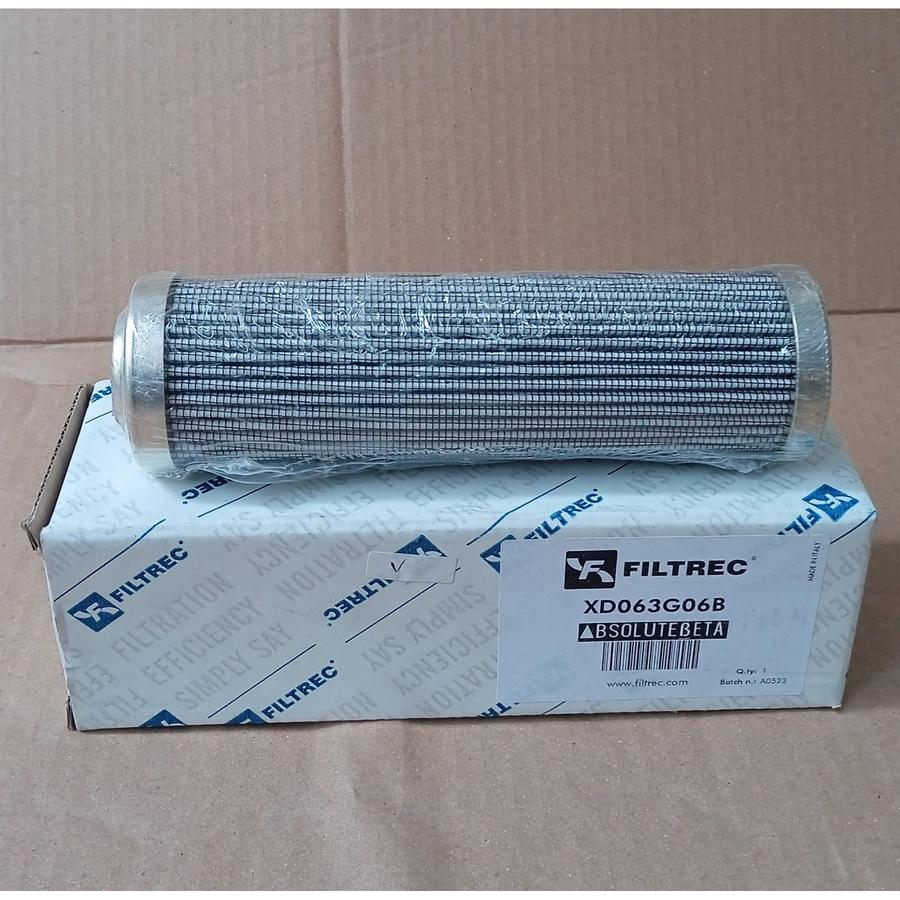

Part Number: XD063G06B

Description:
Part Type: Hydraulic Element Type: Pressure Line Product Media: Glass Height: 6.220 OD Top: 1.750 ID Top: 0.870 OD Bottom: 1.750 Collapse Pressure (PSI): 3045 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 13 Filter Area (SQ IN): 135 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/5.4 Beta Ratio 2: 1000/7.7 Micron 1: 5 Weight (LBS): 0.7

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

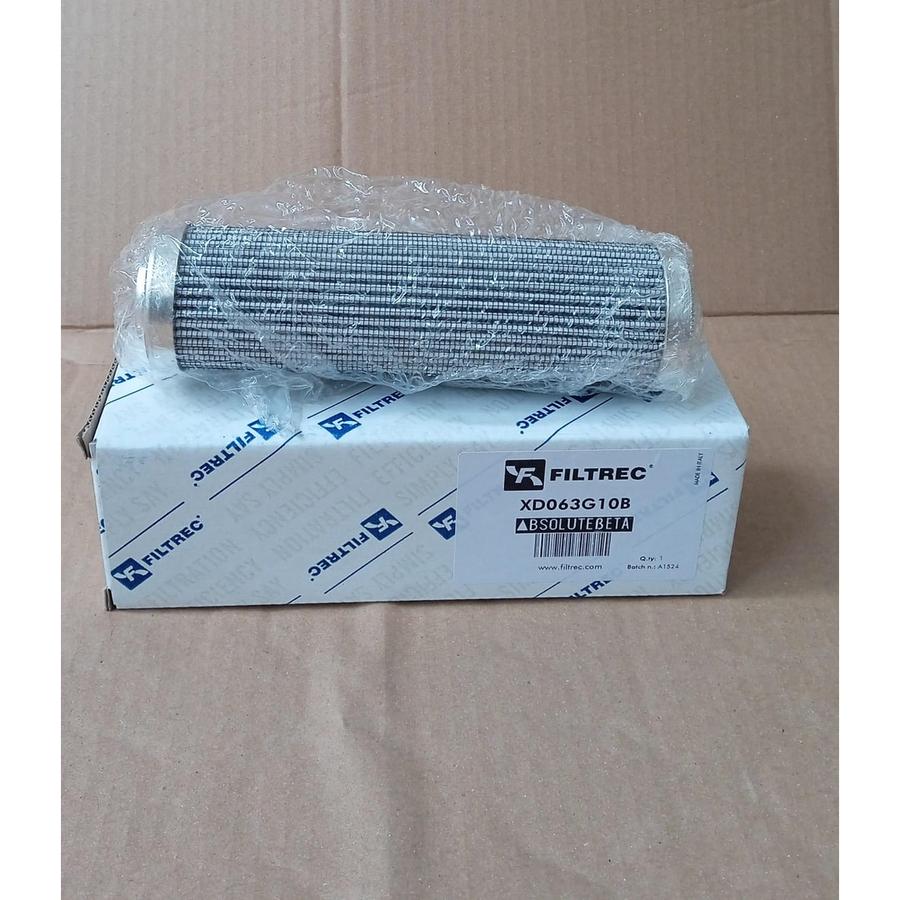

Part Number: XD063G10B

Description:
Part Type: Hydraulic Element Type: Pressure Line Product Media: Glass Height: 6.220 OD Top: 1.750 ID Top: 0.870 OD Bottom: 1.750 Collapse Pressure (PSI): 3045 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 13 Filter Area (SQ IN): 135 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/9.9 Beta Ratio 2: 1000/12.4 Micron 1: 10 Weight (LBS): 0.7

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

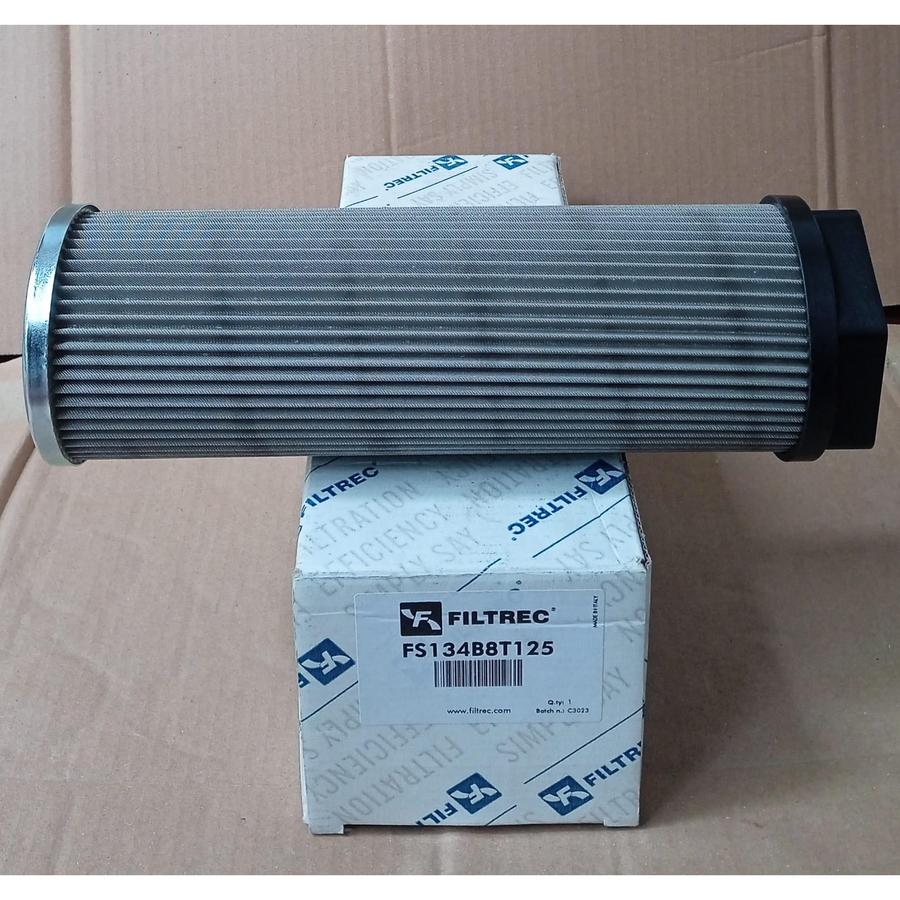

Part Number: FS134B8T125

Description:
Part Type: Hydraulic Element Type: Suction Strainer Product Media: Wire Mesh Height: 10.240 OD Top: 3.390 OD Bottom: 3.390 Thread Size (in): 2 Thread Type: BSP Collapse Pressure (PSI): 15 Flow Rate (GPM): 40 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Filter Area (SQ IN): 235 Flow Direction: Outside-In Fluid Type: HH / HL / HM / HV Micron 1: 125 Weight (LBS): 1.2496

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
