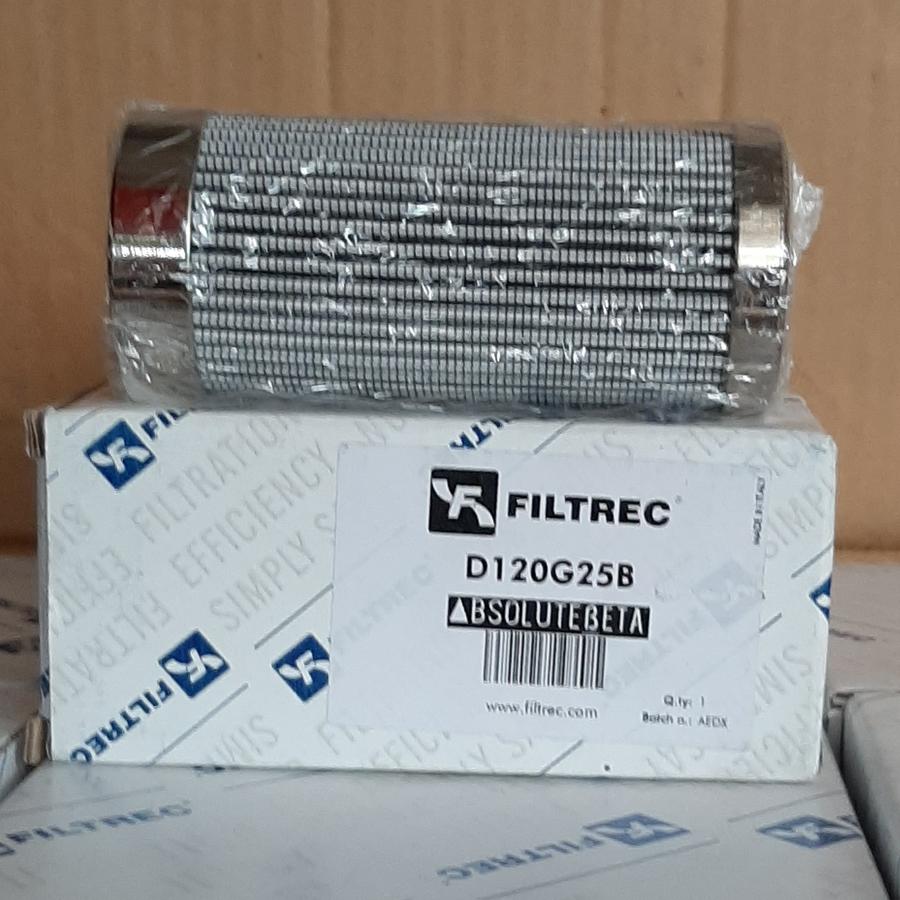

Part Number: D120G25B

Description:
Part Type: Hydraulic Element Type: Pressure Line Product Media: Glass Height: 4.480 OD Top: 2.010 ID Top: 0.940 OD Bottom: 2.010 Collapse Pressure (PSI): 3045 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 11 Filter Area (SQ IN): 119 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/20.7 Beta Ratio 2: 1000/26.6 Micron 1: 20 Weight (LBS): 0.9435

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

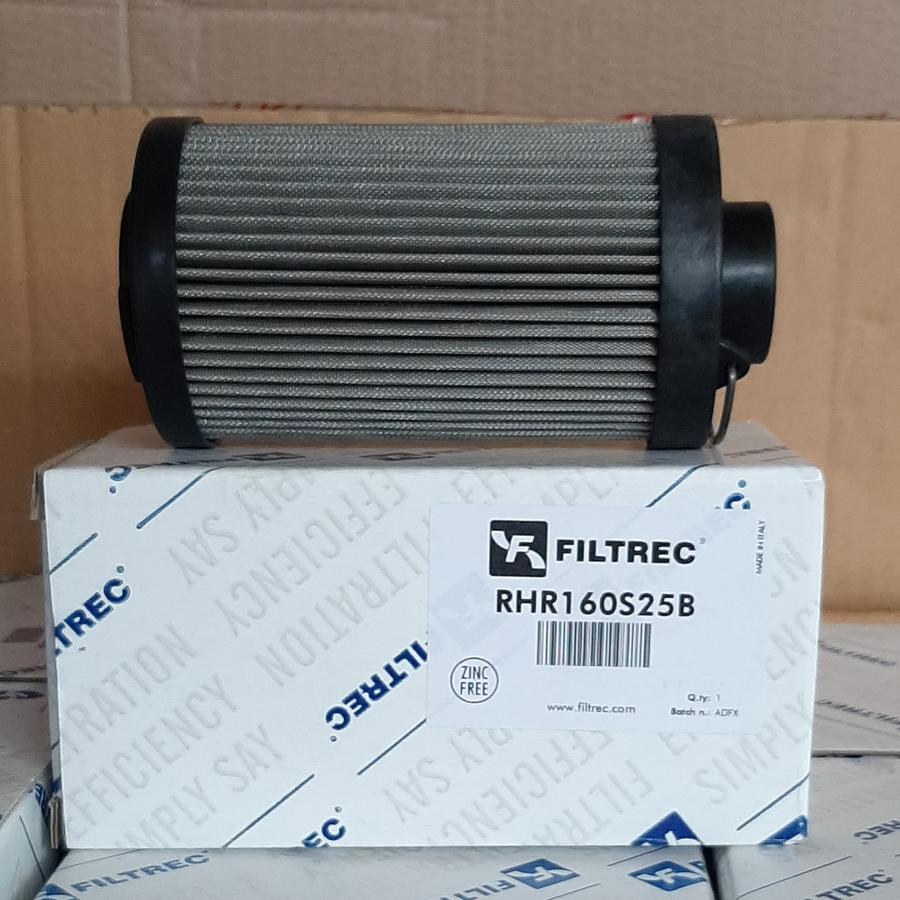

Part Number: RHR160S25B

Description:
Part Type: Hydraulic Element Type: Return Line Product Media: Wire Mesh Height: 5.670 OD Top: 2.890 OD Bottom: 2.890 ID Bottom: 1.350 BPVS_Setting (PSI): 43.5 Collapse Pressure (PSI): 435 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Filter Area (SQ IN): 278 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Micron 1: 25 Weight (LBS): 0.862

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

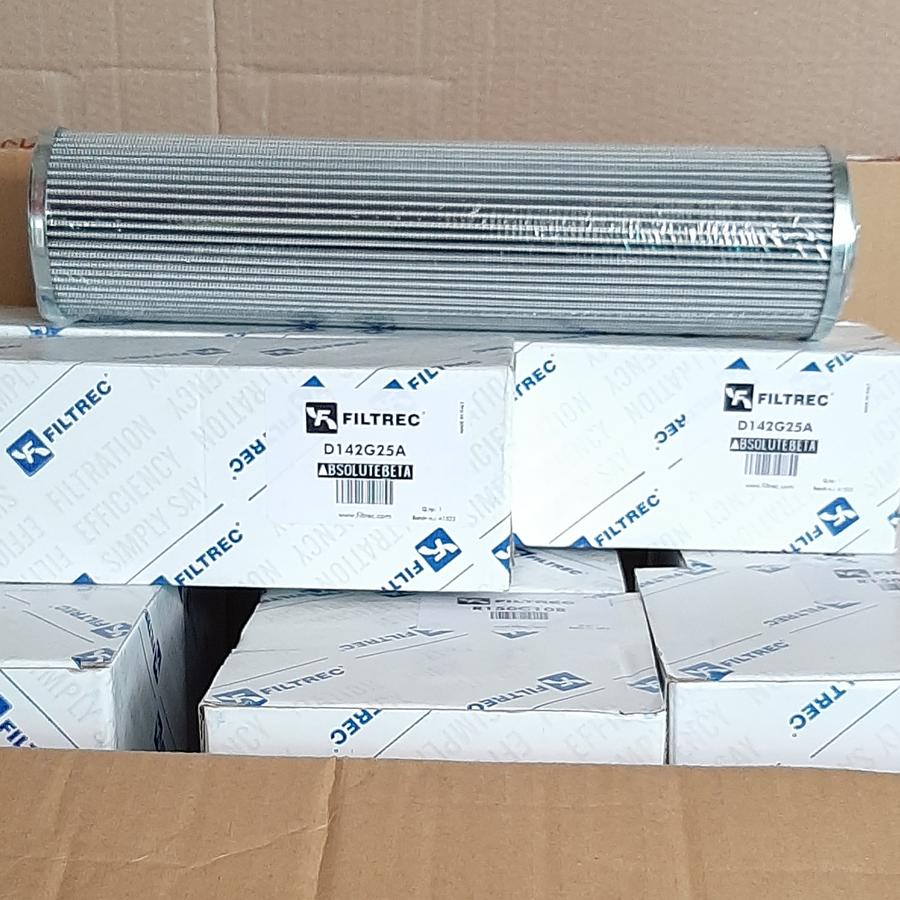

Part Number: D142G25A

Description:
Part Type: Hydraulic Element Type: Pressure Line Product Media: Glass Height: 12.950 OD Top: 3.090 ID Top: 1.720 OD Bottom: 3.090 Collapse Pressure (PSI): 305 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/20.7 Beta Ratio 2: 1000/26.6 Micron 1: 20 Weight (LBS): 2.145

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

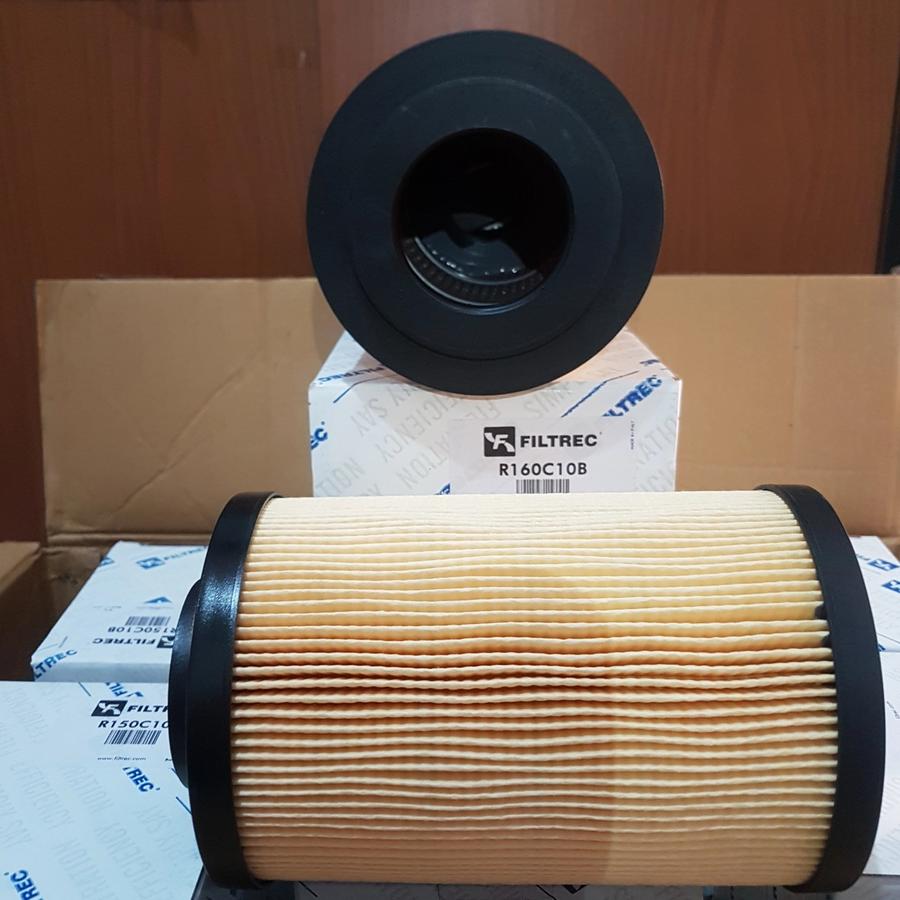

Part Number: R160C10B

Description:
Part Type: Hydraulic Element Type: Return Line Product Media: Cellulose Height: 8.230 OD Top: 5.120 ID Top: 2.540 OD Bottom: 5.120 BPVS_Setting (PSI): 24.7 Collapse Pressure (PSI): 44 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 37 Filter Area (SQ IN): 913 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 2/10 Micron 1: 10 Weight (LBS): 2.4

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

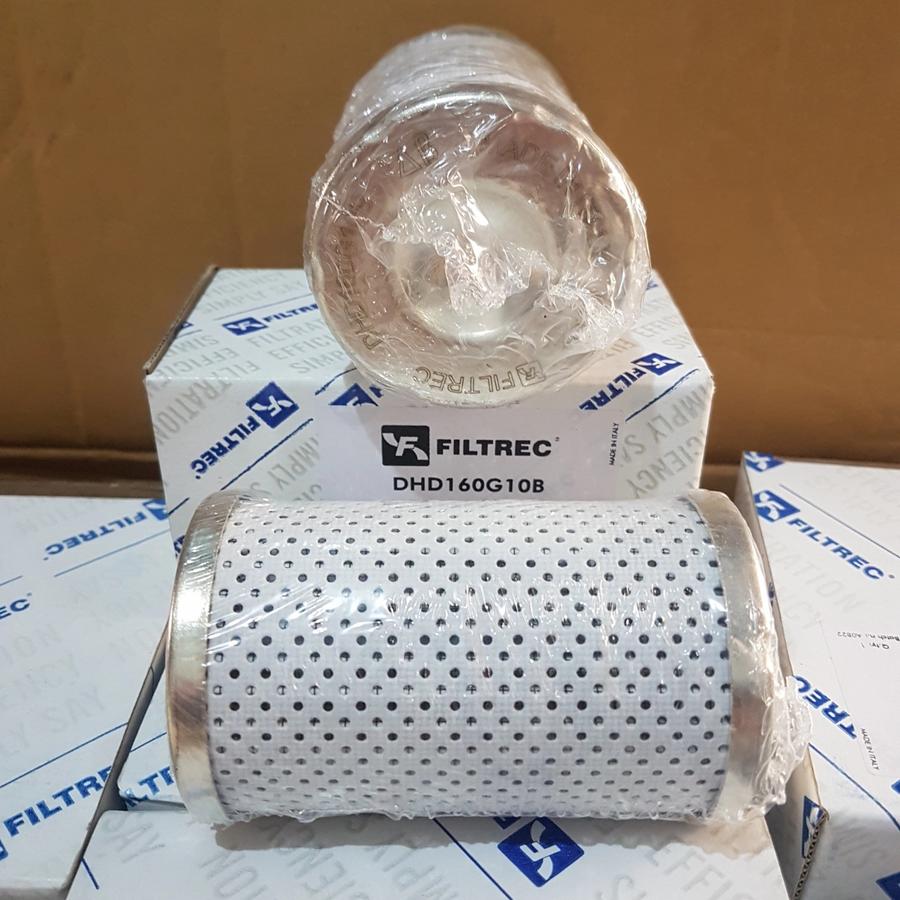

Part Number: DHD160G10B

Description:
Part Type: Hydraulic Element Type: Pressure Line Product Media: Glass Height: 4.530 OD Top: 2.720 ID Top: 1.350 OD Bottom: 2.720 Collapse Pressure (PSI): 435 Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 20 Filter Area (SQ IN): 207 Flow Direction: Outside-In Gasket Material: Viton Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/9.9 Beta Ratio 2: 1000/12.4 Micron 1: 10 Weight (LBS): 0.81

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

Part Number: A110G06

Description:
Part Type: Hydraulic Element Type: Spin-On Product Media: Glass Height: 5.750 OD Top: 3.780 OD Bottom: 3.780 Thread Size (in): 3/4 Thread Type: BSP ADBV: NO Burst Pressure (PSI): 304.6 Collapse Pressure (PSI): 145 Flow Rate (GPM): 22 GPM Operating Temp Min (F): -13 Operating Temp Max (F): 248 Capacity (GR): 28 Filter Area (SQ IN): 295 Flow Direction: Outside-In Gasket Material: Buna Fluid Type: HH / HL / HM / HV Beta Ratio 1: 200/5.4 Beta Ratio 2: 1000/7.7 Micron 1: 5 Weight (LBS): 1.7248 Note : Gambar hanya ilustrasi

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com

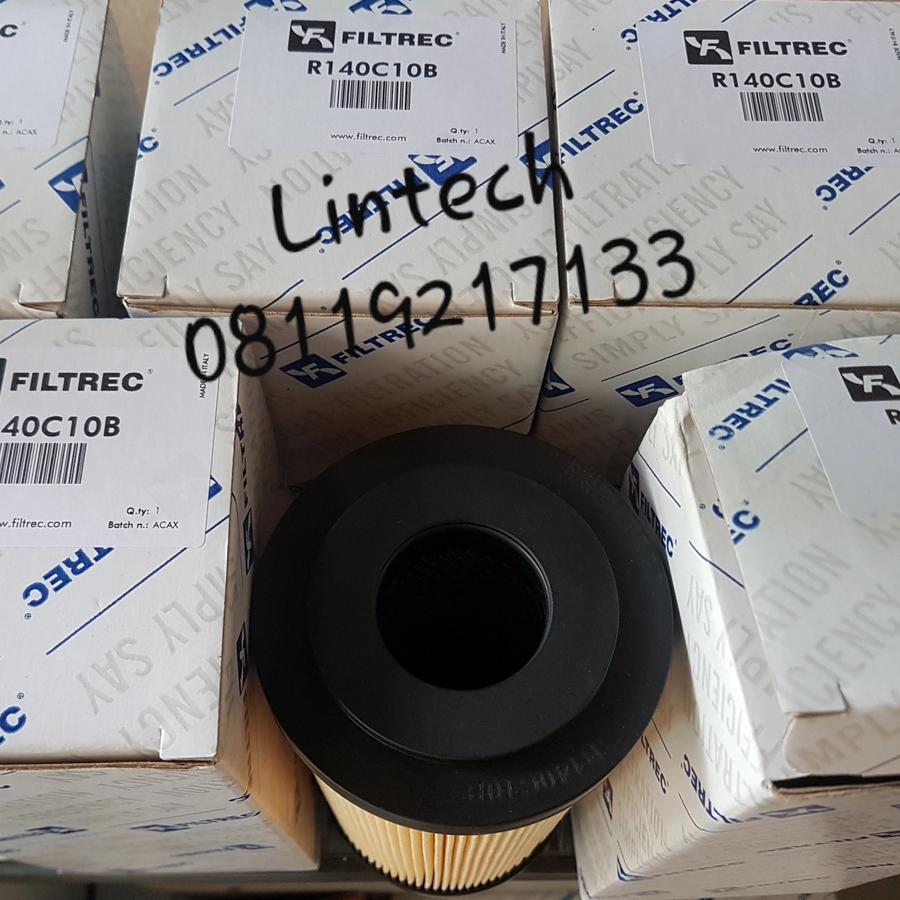

Part Number: R140C10B

Description:
Part Type: Hydraulic Element Product Media: Paper/Cellulose Height: 8.270 OD Top: 3.940 ID Top: 1.600 BPVS_Setting (PSI): 36 Collapse Pressure (PSI): 232 Operating Temp Min (F): -40 Operating Temp Max (F): 212 Gasket Material: NBR Micron 1: 10 Weight (LBS): 2.138

Tokopedia: View on Marketplace

For further information about this product:
+62 811-9217-133
or
sales_engg@hydromatiktechnology.com
